Study on fluid flow and flow-induced noise simulation for a Circular Cylinder

2.1 RANS Model

In this study, the k-ϵ, k-ω and k-ω SST models among the RANS models were employed. All of these are two-equation turbulence models, calculating turbulent viscosity μ_t by solving transport equations for turbulent kinetic energy k and either turbulent kinetic energy dissipation rate ϵ or specific turbulent dissipation rate ω.

First, in the k-ϵ model[20], the transport equations for turbulent kinetic energy k and turbulent dissipation rate ϵ are expressed as Equations (1) and (2), respectively. The turbulent viscosity μ_t is then calculated using Equation (4).

Here, P represents the production term of turbulent kinetic energy k, defined as follows:

The turbulent viscosity μ_t is subsequently calculated according to Equation (4):

Next, in the k-ω model[21], the transport equations for turbulent kinetic energy k and specific turbulent dissipation rate ω are expressed as Equations (6) and (7), respectively:

In the k-ω model, turbulent viscosity μ_tis defined as shown in Equation (7):

The k-ω model employed in this study is based on the Wilcox k-ω model[22], which utilizes a modified specific turbulent dissipation rate $$ \widehat{\omega }$$ to partly address sensitivity issues in free-stream calculations. This modified dissipation rate is defined as follows:

The k-ε model is well suited for predicting free-stream flows but shows reduced accuracy in near-wall regions with strong adverse pressure gradients. Conversely, the k-ω model captures boundary-layer flows near wall more effectively, although it exhibits high sensitivity to inlet conditions in the free-stream regions[23].

To overcome the limitations of these two models, Menter[24] proposed a hybrid model called the k-ω SST (Shear Stress Transport) model. This model is based on the transport equation of the specific turbulent dissipation rate ω in the k-ω model but introduces a blending function F₁ to switch the model depending on the flow region. Through this approach, the k-ω model is applied near the wall region, and the k-ε model is applied in the free-stream region outside the boundary layer, allowing the advantages of both models to be utilized simultaneously[25].

The transport equation of the specific turbulent dissipation rate ω for the k-ω SST model is expressed as Equation (9), and the corresponding turbulent viscosity μ_t is defined by Equation (10).

The specific definitions and values of the turbulence model constants and limiters used in Equations (1) to (10) can be found in the related previous studies and references[20]-[25].

2.2 LES Model

In LES, a key aspect is modeling the subgrid-scale (SGS) stress, $$ {\tau }_{ij}^{SGS}$$. As Equation (11), this stress is a nonlinear residual term that arises from filtering the convective term.

Similar to the treatment of turbulent viscosity μ_t in RANS, the SGS stress is represented using an SGS turbulent viscosity, μ_SGS, as follows[26].

LES turbulence models are commonly classified according to the definition of μ_SGS. In this study, the Smagorinsky-Lilly, dynamic Smagorinsky-Lilly, and WALE models were employed.

The Smagorinsky-Lilly model[27] introduces the length scale and velocity scale of eddies to model μ_SGS, which are defined as follows.

Here, C_s denotes the Smagorinsky constant. Lilly[28][29] suggested a value in the range 0.17≤C_s≤0.21 based on Kolmogorov’s turbulence energy spectrum through analysis of the inertial subrange of isotropic turbulence. However, such values may yield excessively high turbulent viscosity in near-wall regions, leading to abnormal dissipation of turbulent kinetic energy. Therefore, in this study, a value of C_s=0.1, which has benn shown to provide empirically stable under various flow conditions, was adopted.

The Smagorinsky-Lilly model has a limitation in that its accuracy deteriorates near walls or in regions with rapidly changing flow characteristics when a constant C_s is used. To address this issue, the Dynamic Smagorinsky-Lilly model [30] was proposed. This model introduces an additional test filter with a larger scale than the grid filter. The characteristic length of the test filter ζ_test is typically set to be about 2 to 2.5 times larger than ζ that of the grid filter. The SGS stress with the test filter applied is defined as follows [31].

Meanwhile, the expression for the original SGS stress with the test filter applied as follows.

Let the residual composed of the difference between the two stress terms be denoted as L_ij. In the Dynamic model, L_ij is modeled in the following form by relating it to tensor terms β_ij and α_ij which correspond to the structure of the Smagorinsky model.

At this point, the Smagorinsky constant C_s is dynamically computed using least squares minimization approach, as defined below[32].

The WALE model was proposed to address the issue of excessive turbulent viscosity predicted by the Smagorinsky model near wall regions. This model considers not only the strain rate tensor S_ij but also the rotation rate tensor Ω_ij, allowing it to capture the nonlinear characteristics of turbulent structures more accurately[33]. The SGS viscosity in LES model is generally expressed in the following form.

In the Smagorinsky-Lilly model, $$ O\widetilde{P\left(x,t\right)}$$ is defined as $$ \widetilde{OP\left(x,t\right)}=\sqrt{2\hspace{0.17em}\widetilde{S_{ij}} \widetilde{S_{ij}}}$$. However, in the WALE model, a new strain-rate-based tensor $$ S_{ij}^d$$ was introduced by Nicoud and Ducros[34], and the formulation is constructed as shown in Equation (19).

Accordingly, $$ O\widetilde{P\left(x,t\right)}$$ is defined as follows.

Therefore, the SGS turbulent viscosity in the WALE model is determined as shown in equation (21).

Nicloud proposed a model constant in the range of 0.55≤C_m≤0.6, and in this study, a value of C_m=0.35 was applied in consideration of numerical stability and convergence under various flow conditions.

2.3 FW-H Acoustic Analogy Equation

The FW-H equation is an acoustic analogy used to predict noise sources by accounting for the motion of solid boundaries and pressure fluctuations within unsteady flow fields. It is expressed as shown in Equation (22)[12].

Here, ρ'represents the acoustic perturbation variable induced by unsteady variations in the flow field, and f is a function used to describe the interior and exterior of a solid object—taking values f(x,t)<0inside the object, f(x,t)>0outside, and f(x,t)=0on the surface. This definition allows for the continuous representation of the geometric location of the boundary surface, enabling efficient incorporation of surface integral information in the FW-H equation.

Additionally, P_ij=pδ_ij-τ_ij, where τ_ij denotes the viscous stress, and v_i represents the velocity component of the moving solid boundary.

In Equation (22), the right-hand side of the FW-H equation is classified according to physical characteristics as follows. The first term represents a volume source term, corresponding to a quadrupole noise source generated by turbulence and compressibility effects. The second term is a dipole noise source caused by fluctuations in the stress acting on the solid surface, commonly referred to as loading noise. The third term corresponds to a monopole noise source, generated by the motion of the solid boundary or volumetric changes in the fluid, and is classified as thickness noise.

Here, $$ T_{ij}^L$$ is the Lighthill stress tensor, which mathematically represents the volume noise source generated by turbulence and compressibility effects within the flow field. It is defined as shown in Equation (23) [9].

To capture the major noise sources generated by turbulence in the flow field, a virtual permeable surface was defined to enclose the object. This approach integrates the noise sources based on flow variables on a specific control surface within the flow field[34]. In particular, when the surface is positioned in regions of high turbulence intensity, it can effectively capture quadrupole noise sources through monopole noise induced by fluid volumetric changes and dipole noise caused by lift force fluctuations. Therefore, in this study, the FW-H equation with a permeable surface was applied to evaluate the characteristics of flow-induced noise under subsonic conditions.

2.4 Flow Analysis Model for Circular Cylinder

For the fluid flow and acoustic analysis of the circular cylinder, the computational domain was configured in a circular shape, as shown in Figure 1(a). The diameter of the target circular cylinder is D=0.02m, the inlet velocity is u_∞=65.49m/s and the Reynolds number is Re_D=9.0×10⁴. The radial boundary of the flow domain extends up to a distance of 20D from the center of the cylinder, and the spanwise domain length is set to πD.

Figure 1.

Computational domain and grid configuration for analysis: (a) A Planer view of the circular domain with inlet velocity and Re number; (b) boundary conditions and grid inside in cylindrical Coordinate (Nr,Nθ,Ns)

Regarding boundary conditions, a freestream inlet condition was applied on the upstream hemispherical boundary, and a pressure outlet condition was applied on the downstream side. On the surface of the cylinder, no-slip and adiabatic boundary conditions were imposed. For the turbulent models, freestream turbulent intensity set to I=0.5% and relative freestream k_∞,ε_∞, and ω_∞ are set as follows:

$$ k_{\infty }=\frac{3}{2}{\left(U_{\infty }I\right)}^2$$

$$ {\epsilon }_{\infty }=C_{\mu }^{3/4} \frac{k_{\infty }^{3/2}}{0.07D}$$

$$ {\omega }_{\infty }=\frac{{\epsilon }_{\infty }}{C_{\mu }{k}_{\infty }}$$

The mesh system was constructed based on a cylindrical coordinate system and is defined by the number of divisions in the radial (N_R), azimuthal (N_θ), and spanwise (N_S)directions (see Figure 1(b)). For the RANS analysis, three grid resolutions—Coarse, Medium, and Fine—were designed for grid convergence evaluation. Table 1 compares the enlarged grid structure near the cylinder used in both LES and RANS analyses.

Table 1:

Grid information for Coarse, Medium, Fine case of RANS

Figure 2 shows the results of the grid dependency test conducted for the RANS cases. It was observed that, for all RANS turbulence models, the drag coefficient of the circular cylinder remains nearly constant beyond the medium grid resolution. Based on this, the medium grid was selected for further analysis in the RANS simulations.

Figure 2:

Grid convergence test for RANS turbulence model

In the case of LES, more than 80% of the total turbulent kinetic energy must be resolved directly without relying on the SGS (Subgrid-Scale) model. To satisfy this criterion, the turbulent kinetic energy (k) and its dissipation rate (ϵ) must meet the following conditions.

In this context, the number of grid cells for LES analysis was determined based on the turbulent kinetic energy k and its dissipation rate ε obtained from the RANS analysis. The final grid configuration was set to N_r×N_θ×N_s=350×304×40, resulting in a total of 42.0×10⁵ cells. Additional details related to the flow simulation settings are summarized in Table 2. In the Table 2, The acoustic analysis requires a smaller time step than the flow analysis to accurately capture the propagation of pressure perturbations to the receiver.

Table 2:

Simulation settings for circular cylinder flow

3.1 Fluid flow Analysis Results

Figure 3 presents the visualization of vortex structures formed in the wake of a circular cylinder for various turbulence models using the Q-criterion (Q = 0.01). The RANS-based k-ϵ model exhibits spanwise-averaged flow, showing two-dimensional flow characteristics despite being a three-dimensional computation.

Figure 3:

Vortex structures in the wake of a circular cylinder visualized using the Q-criterion (Q=0.01) for various models (a) Top view, (b) Front view and (c) Isometric view

This is evident in Figure 3(b), where almost two dimensional vortex structures are formed in the front view, and is further supported by the uniform spanwise velocity component observed in the top view in Figure 3(a). In contrast, both the k-ω and k-ω SST models show more regular vortex structures in the spanwise direction and demonstrate the progression of vortices in the streamwise direction.

The LES-based Smagorinsky-Lilly, Dynamic Smagorinsky-Lilly, and WALE models capture three-dimensional turbulent structures with high fidelity. As shown in Figure 3(c), the vortex shedding phenomenon and complex vortex interactions in the wake of the cylinder are clearly represented. Among these, the WALE model successfully simulates flow structures even near the wall, and it reveals distinct spanwise flow non-uniformity and turbulence structures. This is because the WALE turbulence model accounts for the nonlinear vortex structures of turbulence through the deformation tensor $$ S_{ij}^d$$. Overall, it is clear that LES models captures wake vortex structures with higher accuracy and more realistic physical representation compared to RANS models.

Table 3 compares the aerodynamic characteristics of the circular cylinder for six turbulence models with experimental results reported by West[38], Achenbach[39], Cantwell[40], and Norberg[41]. Among the comparison parameters, the frequency (f) refers to the fluctuation frequency of the lift coefficient caused by vortex shedding around the cylinder. The Strouhal number is the nondimensional form of this frequency and is defined as follows:

Table 3:

Comparison between experimental data and CFD simulation results for circular cylinder flow(SL* : Smagorinsky-Lilly model)

According to the results in Table 3, the RANS model failed to adequately reproduce the aerodynamic characteristics of the circular cylinder. In particular, the RMSE of the lift coefficient oscillations and the drag coefficient values were significantly underpredicted compared with the experimental data. Moreover, the frequency and Strouhal number (St) associated with the lift coefficient oscillations were overestimated, and the separation point appeared to be delayed. In contrast, the LES results showed that the Smagorinsky-Lilly model predicted the separation point relatively well, but it still failed to accurately capture the aerodynamic characteristics such as the lift and drag coefficients.

Among the LES models, the Dynamic Smagorinsky-Lilly and WALE models exhibited aerodynamic characteristics most consistent with the experimental results. Their predictions exists within the range of the reference experimental data, indicating that these turbulence models are capable of reliably capturing aerodynamic behavior. In contrast, the RANS models predicted an excessively delayed separation point, leading to vortex-shedding frequencies and drag-coefficient fluctuations that deviated substantially from the physical phenomena. Furthermore, the LES Smagorinsky-Lilly model suggested that the use of a fixed C_s coefficient is insufficient to represent complex flow behavior.

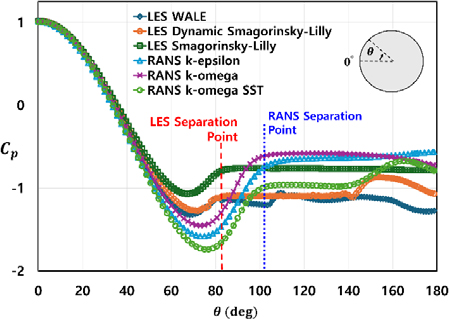

Figure 4 shows the comparison of the pressure coefficient (C_p) along the surface of the circular cylinder, measured clockwise from the stagnation point 0^∘ to 180^∘. In the favorable pressure gradient region, all turbulence models exhibit similar pressure distributions regardless of model type. However, in the adverse pressure gradient region, distinct differences are observed in both the separation point and pressure distribution depending on the turbulence model. In particular, the RANS models predict flow separation at a location delayed by approximately 20^∘ or more compared to the LES models, resulting in a noticeable deviation from the actual physical behavior.

Figure 4:

Pressure coefficient along azimuthal angle at cylinder surface

The reason for the delayed separation point in RANS models can be identified through the streamline distributions shown in Figure 5. In the LES-based Dynamic Smagorinsky-Lilly and WALE models, small-scale vortices that separate from the cylinder surface and are ejected outward are clearly observed. A large vortex structure, denoted as A, forms in the wake of the cylinder and simultaneously interacts through shear mechanisms with a counter-rotating vortex B located beneath it, as well as with surrounding small-scale vortices (A'). These multi-scale shear interactions effectively facilitate the transfer of turbulent energy, enabling the separation point to be modeled in a manner consistent with experimental observations.

Figure 5:

Streamline behind the circuluar cylinder with time increasement Δt=5.36×10-4 for dynamic Smagorinsky-Lilly (a), WALE (b), and k-ω SST (c)

In contrast, the RANS model based on the k-ω SST formulation forms only large-scale vortices A and B in the wake of the cylinder, while small-scale vortices are not observed. As a result, the turbulence structures in the wake region are simplified, and shear interactions are weakened. This ultimately leads to a downstream delay in the flow separation point. In practice, flow separation occurs around 80^∘ in the LES models, whereas in the k-ω SST model, separation occurs at approximately 100^∘ to 110^∘. This delayed separation leads to a reduction in pressure drag, which explains why the drag coefficient predicted by the RANS-based analysis is lower than both the experimental data and the LES results.

In conclusion, based on quantitative comparisons with experimental results and the physical interpretation of the flow structures, the turbulence models that most realistically reproduce the flow characteristics and aerodynamic behavior in the wake of a circular cylinder are the LES-based Dynamic Smagorinsky-Lilly and WALE models.

3.2 Acoustic Analysis Results

The unsteady flow results of the circular cylinder obtained from the CFD analysis in Section 3.1 are used as input data for flow-induced noise analysis. In particular, the time-dependent pressure fluctuations serve as the acoustic source term in the FW-H equation. The solution computed via the FW-H equation is expressed in the form of p^' (x,t), where x denotes the observer

location and t represents the time at which the noise reaches that location. The acoustic pressure obtained in the time domain through the FW-H equation is transformed into the frequency domain sound pressure level (SPL) using the Fast Fourier Transform (FFT), and is defined as follows:

The flow considered in this study corresponds to a subsonic condition with a Mach number of approximately M≈0.2, in which the contribution of quadrupole noise is relatively small. Therefore, the volume source term representing quadrupole sources plays a limited role. To account for this, a virtual permeable surface was defined at a radial distance of 2.5D=0.05m, which corresponds to the region where vortex shedding is most intense. Based on the monopole and dipole source terms extracted from the flow field within this region, an acoustic analysis was conducted to reconstruct the quadrupole noise.

In the flow-induced noise analysis, the observer location was set at a radial distance of r=2.438m and at an angular position θ=90^∘ from the center of the circular cylinder. This configuration matches the measurement conditions used in Revell’s experiment[19] and was adopted in this study to validate the accuracy and reliability of the proposed aeroacoustic analysis method.

Figure 6 presents the results of flow-induced noise analysis using LES-based turbulence models, comparing the SPL spectra with and without the application of a permeable surface. When the permeable surface was not applied, all three LES models showed SPL values in the range of 74.8 to 77 dB at the first harmonic frequency, which is significantly lower than the 97.9 dB reported in Revell’s experiment. This discrepancy is attributed to the relatively low flow Mach number (M≈0.2), which limits the contribution of turbulence-induced quadrupole sources in the FW-H equation.

Figure 6:

Comparison of sound pressure level spectra with or without permeable surface using LES turbulence model: Smagorinsky-Lilly(top), Dynamic(middle), and WALE(bottom) [19]

In contrast, when the permeable surface was applied, all LES models showed a significant increase in SPL values. Notably, the Dynamic Smagorinsky-Lilly model yielded 94.3 dB, and the WALE model reached 97.8 dB, both closely matching the experimental value. Furthermore, the WALE model not only reproduced the SPL at the first harmonic accurately but also exhibited a spectral distribution in the high-frequency range that closely resembled the experimental results, demonstrating the highest predictive accuracy among the LES turbulence models.

Figure 7 shows the results of flow-induced noise analysis performed using RANS-based turbulence models. Similar to LES models, the RANS models also exhibited an increase in SPL values when the permeable surface was applied. However, the magnitude of this increase was relatively smaller ranging from 9.9 to 11.3 dB compared to the 8.4 to 21.5 dB range observed in LES. This suggests that the RANS models are unable to resolve the fine-scale vortices in the wake of the cylinder, limiting the effective transmission of turbulence-induced noise source through the permeable surface. As a result, none of the RANS models achieved SPL values comparable to the experimental results, providing quantitative evidence of their lower noise prediction accuracy relative to the LES models.

Figure 7:

Comparison of sound pressure level spectra with or without permeable surface using RANS turbulence model: k-ϵ(top), k-ω(middle), and k-ω SST (bottom)[19]

The improvement observed with the permeable surface arises because it directly transmits the unsteady flow structures within its control volume into the acoustic field. In the case of LES, fine-scale vortices and shear-layer interactions are resolved with higher fidelity, producing localized monopole and dipole sources that the permeable surface can effectively capture and radiate as acoustic waves. This mechanism explains enhanced SPL predictions and closer agreement with experimental data in LES. By contrast, RANS models suppress such small-scale fluctuations through Reynolds averaging, preventing the permeable surface from effectively converting them into acoustic sources, which in turn results in weaker SPL amplification.

Table 4 summarizes the harmonic frequencies and corresponding SPL values calculated for each turbulence model, with and without the application of the permeable surface. This allows for a clear comparison of the flow-induced noise prediction performance across different turbulence models.

Table 4:

Predicted Flow induced noise at 1st harmonic frequency and SPL for each turbulence model(r=2.438m, θ=90∘, SL* : Smagorinsky-Lilly)

Figure 8 illustrates the acoustic radiation pattern computed at the observer location (r=2.438m) using the LES-based WALE model. When the permeable surface was not applied, the dominant noise source was the dipole-type radiation caused by pressure fluctuations on the cylinder surface, resulting in a symmetric sound field with clearly defined radiation directions.

Figure 8:

Sound pressure level calculated using the LES WALE model for each direction at r=2.438m and comparison with or without permeable surface

In contrast, with the permeable surface applied, additional noise sources induced by turbulence in the flow field were captured, leading to an overall increase in SPL in all directions. Notably, the largest increase in sound pressure was observed in the θ=90^∘ and θ=270^∘ directions.

When the permeable surface is not applied, turbulence-induced noise sources are not accounted for, and the dominant noise source becomes the dipole noise generated by pressure

fluctuations on the solid surface. The radiation characteristics of such dipole sources are proportional to cosθ, resulting in minimum sound pressure levels at θ=0^∘ and θ=180^∘, where the observer is aligned with the front and rear of the cylinder.

On the other hand, when the permeable surface is applied and turbulence-induced noise sources are included, the quadrupole term in the FW-H equation is additionally considered. Quadrupole noise sources typically exhibit a cos² θ directional pattern, leading to maximum sound pressure levels at θ=90^∘ and θ=270^∘. Thus, it can be confirmed that in these directions, turbulence-induced noise is predominantly radiated.

Figure 9 presents the SPL frequency spectra at observer positions located in the θ=0^∘(Figure 9(A)) and θ=90^∘(Figure 9(B)) directions, at distances of 0.5 m, 1.0 m, and 2.438 m. In both directions, the frequency spectra of SPL exhibit similar distribution patterns, indicating that the dominant acoustic frequency components remain consistent regardless of distance. On the other hand, as the observer location becomes closer to the noise source, the overall SPL level increases, confirming that SPL is dependent on both distance and direction. However, the dominant frequency components themselves are determined by direction (angle) and are not affected by distance. This trend is also confirmed by the quantitative results shown in Table 5.

Figure 9:

SPL spectra with permeable surface using LES WALE model. A(0°) and B(90°).

Table 5:

1st harmonic frequency and amplitude of SPL with permeable surface using LES WALE model
